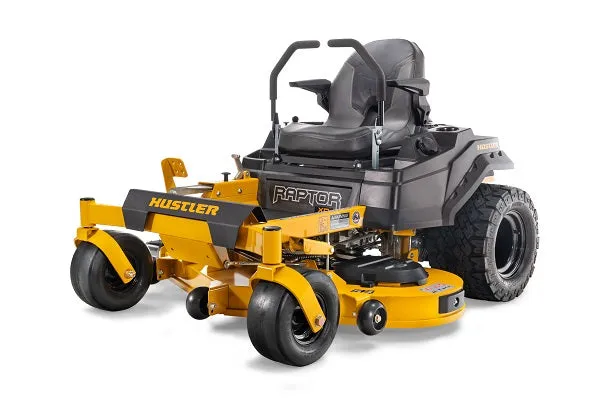

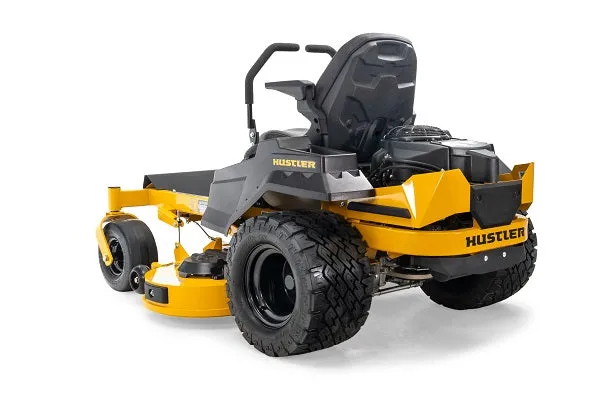

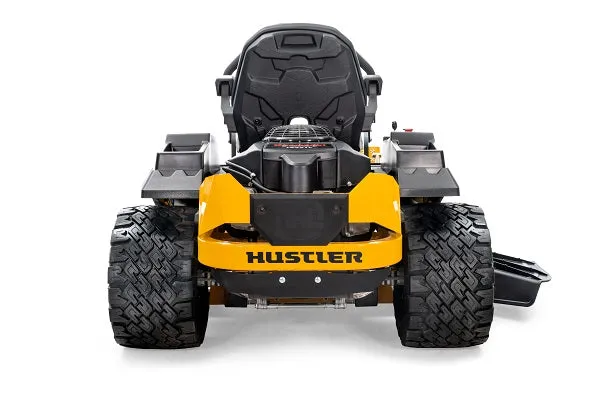

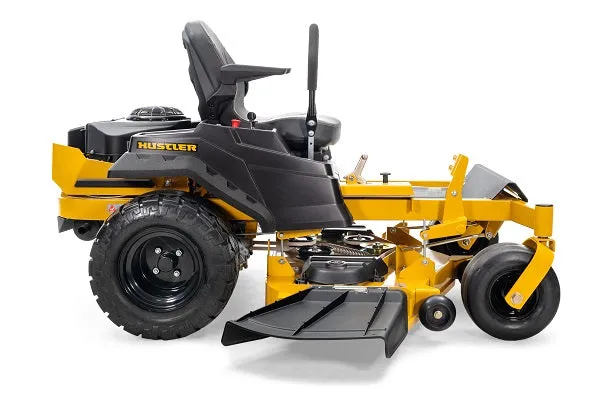

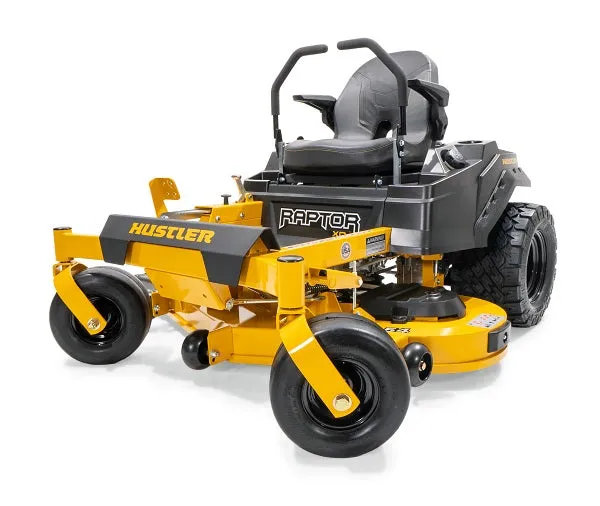

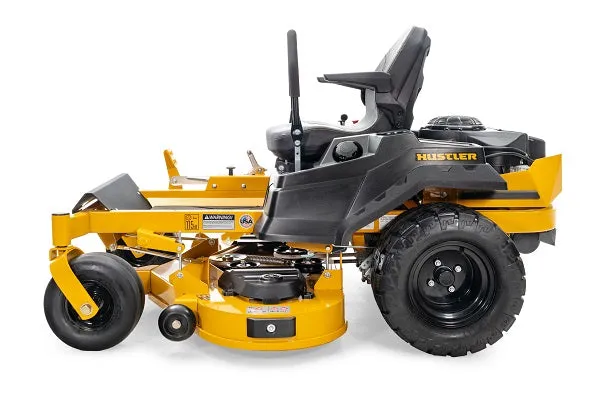

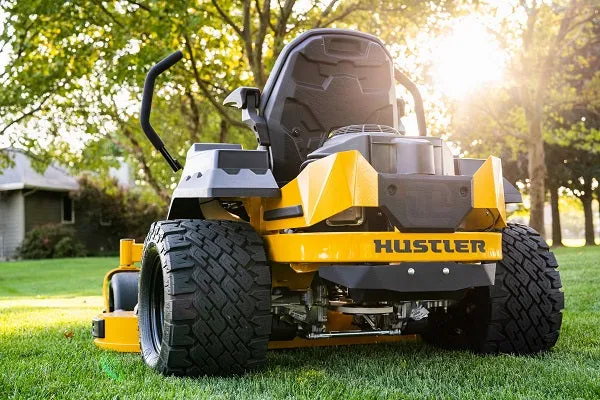

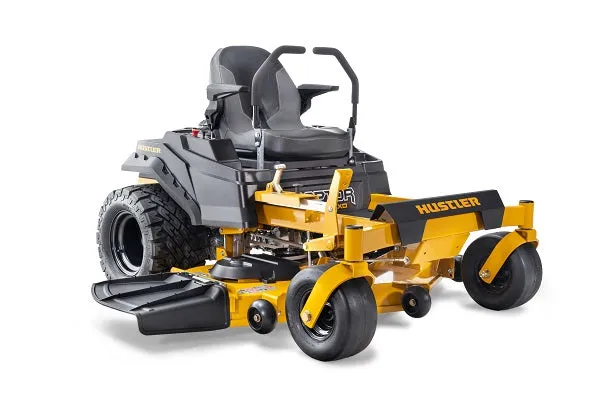

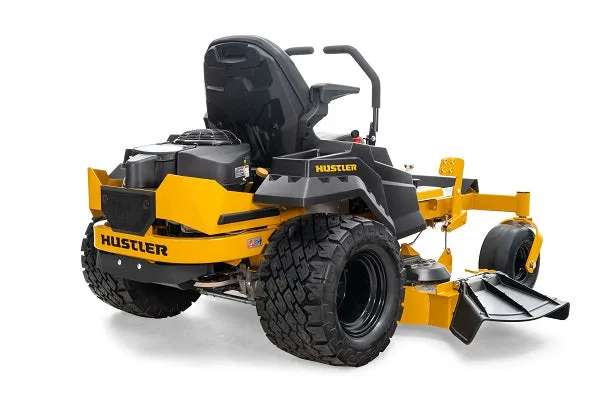

Hustler Raptor XD 60" Residential Zero-Turn Mower w/ Kawasaki FR730 (24HP)
Hustler Raptor XD 60" Residential Zero-Turn Mower w/ Kawasaki FR730 (24HP)
Title:
  • DefaultTitle

$ 88.45

$ 68.04

Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details


Warranty

  • 3 Year Limited, 300-hour residential
  • 3 Year Limited Engine

Literature





Makes Small Work Out of Big Jobs

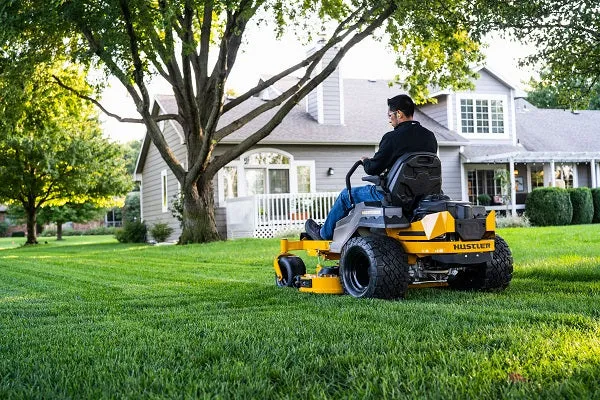

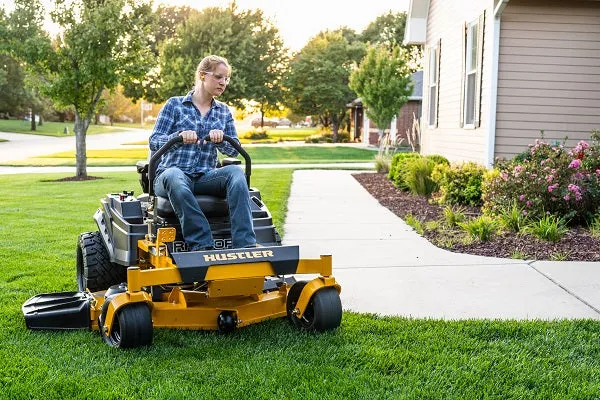

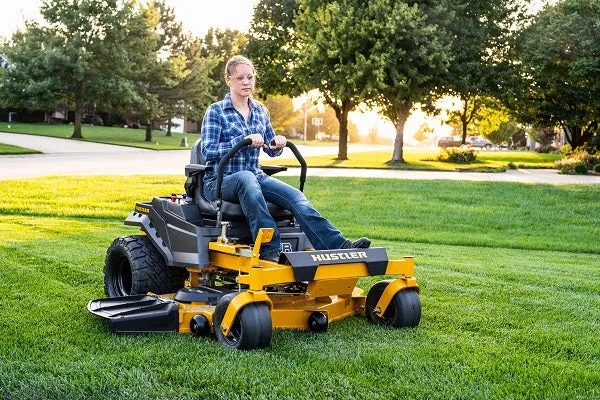

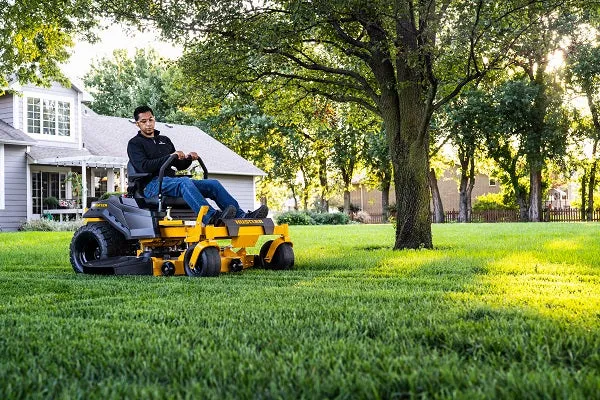

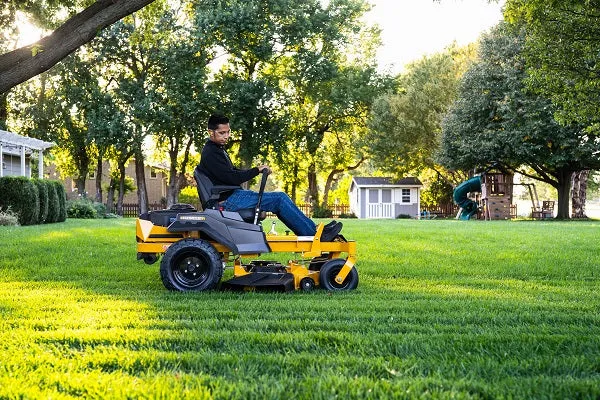

The Hustler Raptor XD 60" is the ideal zero-turn for homeowners with one to three acres of property. The up to 24hp Kawasaki horsepower and 60-inch deck option makes the XD a premium lawn mower in the residential zero-turn category. Like all Raptors, Hustler spent decades and thousands of hours perfecting their durable fabricated decks that provide a professional-grade cut quality. Raptor XD’s are backed by an industry-leading 3yr / 300hr warranty.

  • Welded Steel Deck: Welded fabricated steel deck adds durability & extends the mower’s life. (compared to stamped decks on other brands used to cut costs)
  • Wider Stance: Additional operator platform width provides more room and comfort for the operator
  • SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
  • Premium Seat: Premium bolstered high-back seat with armrests and built-in lumbar support.
  • Rubber Floor Mat: Adds comfort by reducing vibration on the operator's feet and is standard on all Raptor models.
  • Premium Residential Frame: Continuous one-piece 1½ inch by 3 inches welded tubular frame not seen on any other residential mower. #1 in Class
  • Foot-Operated Deck Lift: Easily adjust the deck height between 1.5” - 4.5” with less effort than hand-operated levers found on other brands.
  • Easy to Service: Flip-up seat pan, removable floor pan, vented pulley covers.
  • Exclusive BigBite™ rear tires: Hustler worked directly with the tire manufacturer on this design. You will not find them anywhere else.
  • Premium Power: The V-Twin Kawasaki® engine is the highest-rated residential engine available.

Hustler Raptor XD Accessories

2 Bag Catcher
Mulching Kit 60"
Flex Forks Kit 60"
USB Kits
Light Kit
Stripe Kit 60"
Hitch Kit
Steering Lever Extension Kit

__________________________________________________________________

Specifications

Engine

Engine Manufacturer Kawasaki FR730
Engine Horsepower 24
Displacement 726cc
Cooling Air Cooled
Engine Warranty 3 year

Drive System

Type Dual Hydrostatic
Transmission Hydro-Gear ZT2800
Fuel Capacity 3 gal.
Ground Speed (Fwd) Up to 7.5 mph
Parking Brake Patented Automatic

Deck

Cutting Width 60"
Cutting Height 1.5" to 4.5"
Deck Depth 4.5"
Deck Lift Foot Operated
Number of Blades 3
Blade Length 20.50"
Blade Tip Speed 18,300
Spindles Aluminum w/ 1" shaft and double lip sealed ball bearings
Deck Engagement Ogura GT1.5
Deck Material Fabricated 11 gauge steel
Spindle Mounts Reinforced 7 gauge steel
Impact Trim Area 3/8" x 1" steel bar

Construction

Frame 1.50" X 3" steel tubing
Front Axle Fabricated with sealed ball bearings
Front Caster Wheel Sealed ball bearings
Front Caster Fork Fabricated 3/8" steel

General

Seat Premium bolstered high-back seat with armrests and built-in lumbar support
Cup Holder Yes

Dimensions

Front Tire (Inches)
13 X 6.5
Drive Tire (Inches) 20 x 12-12 BigBite™
Weight (lbs) 680
Height (Inches) 43.7
Length (Inches) 71.1
Width w/ Chute Up (Inches) 64.4
Tire-to-Tire Width (Inches) 48.6
Productivity (Acres Per Hour) 3.64

Warranty

Warranty 3 Year/300-hour residential

Dimensions with Catcher

Catcher Style 2-bag
Powered / Non-powered Non-powered
Catcher Capacity 5.4 bushel
Mower Length w/ Catcher 91.4
Mower Width w/ Catcher 75.5

If you have any questions about this Hustler Raptor XD 60” mower with a Kawasaki FR730 engine, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
