Warranty
- 3 Year Limited, 300-hour residential
- 3 Year Limited Engine
|
Makes Small Work Out of Big Jobs

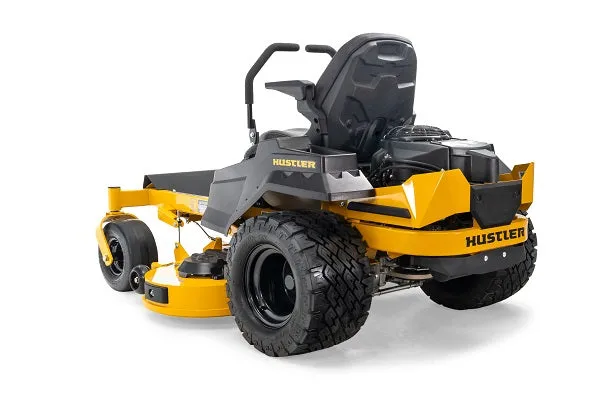

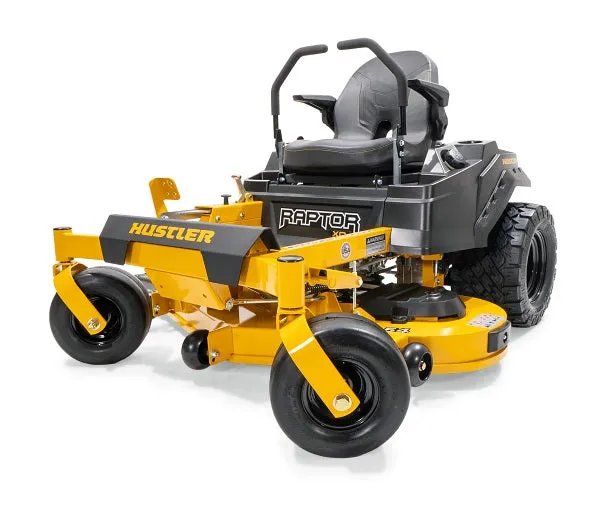

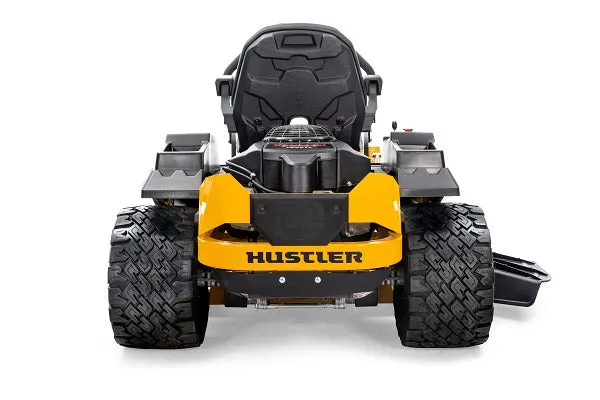

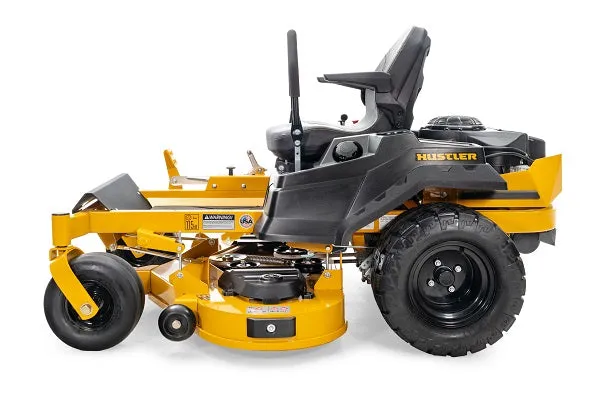

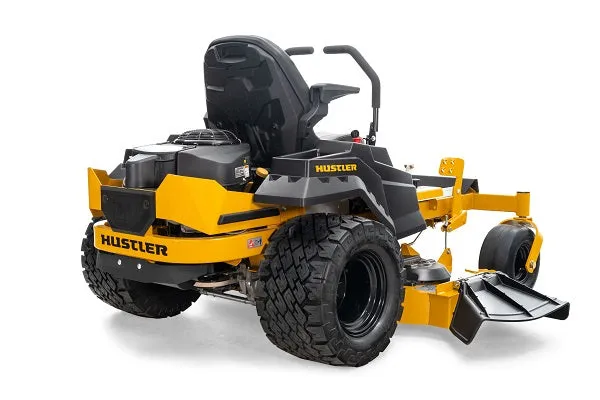

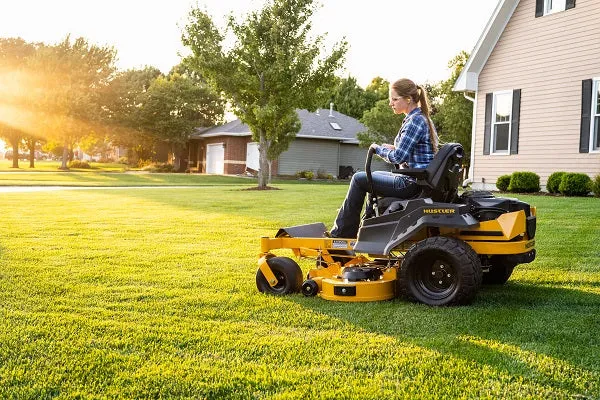

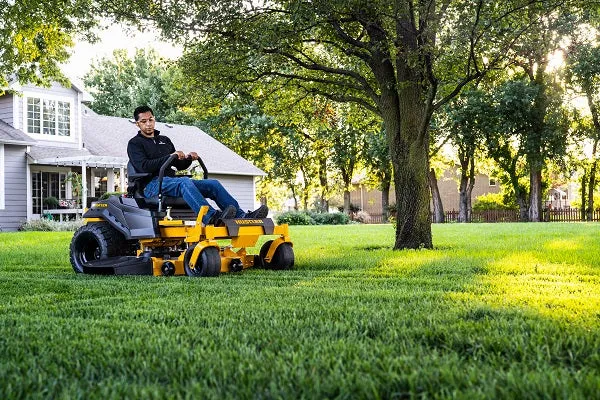

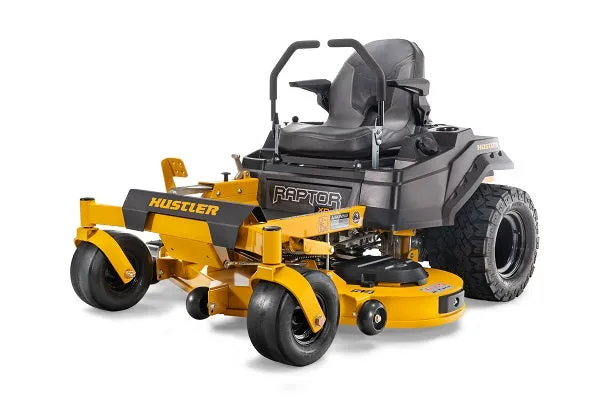

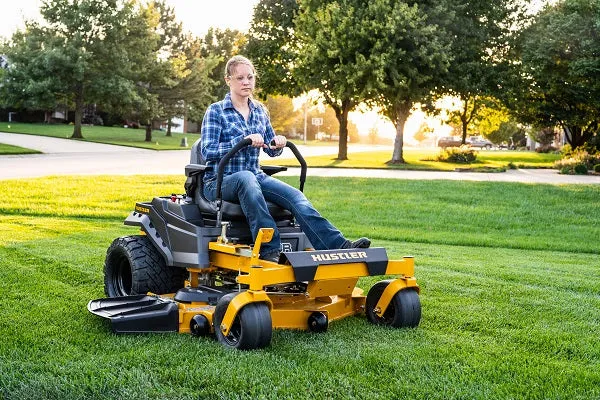

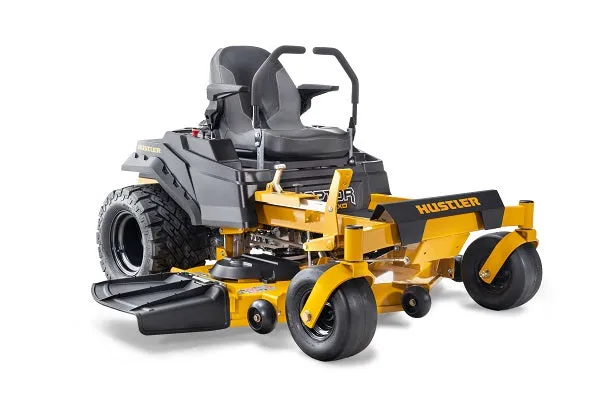

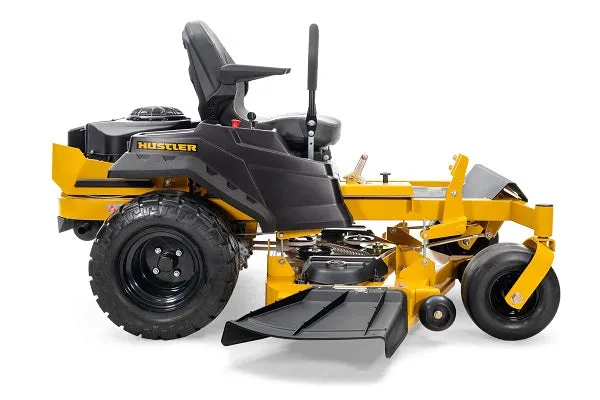

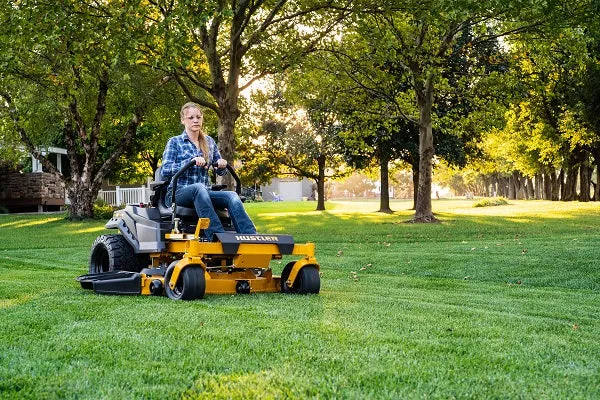

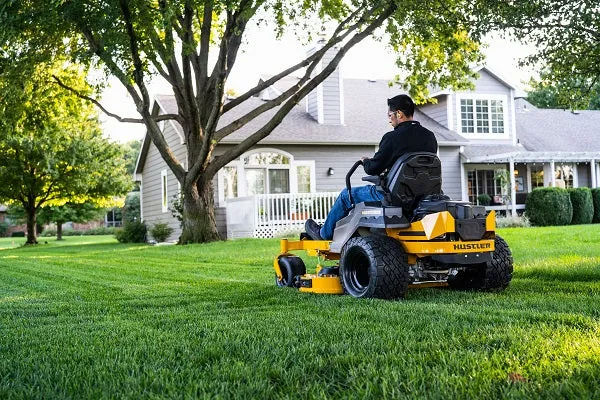

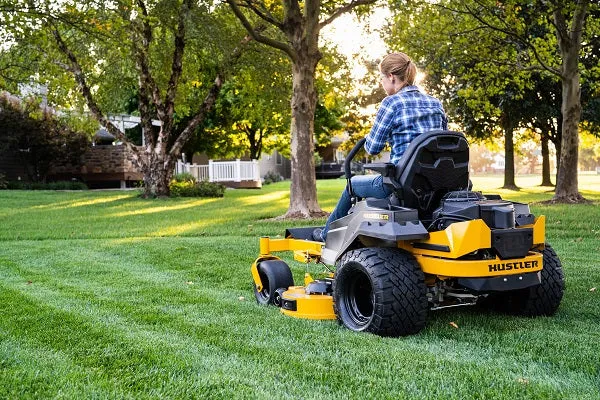

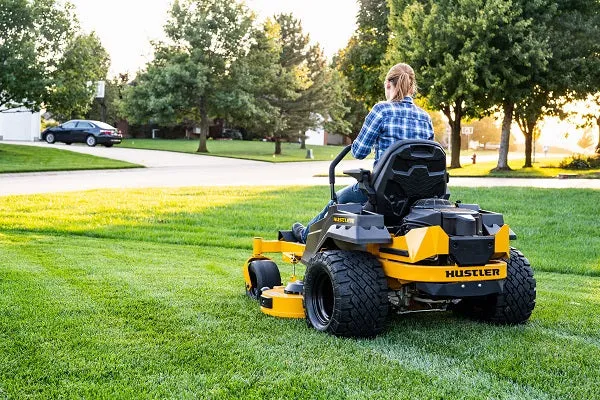

The Hustler Raptor XD 54" is the ideal zero-turn for homeowners with one to three acres of property. The up to 24hp Kawasaki horsepower and 60-inch deck option makes the XD a premium lawn mower in the residential zero-turn category. Like all Raptors, Hustler spent decades and thousands of hours perfecting their durable fabricated decks that provide a professional-grade cut quality. Raptor XD’s are backed by an industry-leading 3yr / 300hr warranty.
-
Welded Steel Deck: Welded fabricated steel deck adds durability & extends the mower’s life. (compared to stamped decks on other brands used to cut costs)
-
Wider Stance: Additional operator platform width provides more room and comfort for the operator
-
SmoothTrak™ Steering: Precision control to help trim and maneuver easily around obstacles. Other brands have sensitive steering arms causing sudden and jerky movements.
-
Premium Seat: Premium bolstered high-back seat with armrests and built-in lumbar support.
-
Rubber Floor Mat: Adds comfort by reducing vibration on the operator's feet and is standard on all Raptor models.
-
Premium Residential Frame: Continuous one-piece 1½ inch by 3 inches welded tubular frame not seen on any other residential mower. #1 in Class
-
Foot-Operated Deck Lift: Easily adjust the deck height between 1.5” - 4.5” with less effort than hand-operated levers found on other brands.
-
Easy to Service: Flip-up seat pan, removable floor pan, vented pulley covers.
-

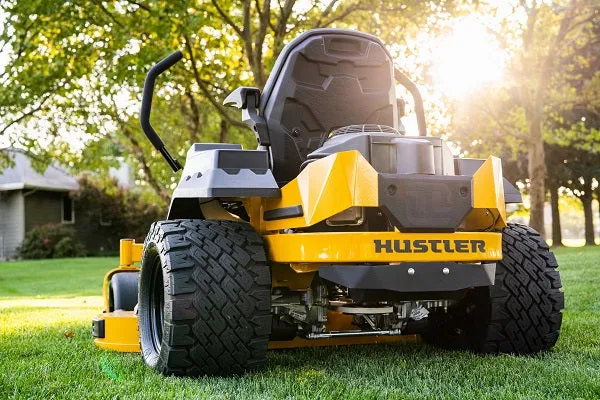

Exclusive BigBite™ rear tires: Hustler worked directly with the tire manufacturer on this design. You will not find them anywhere else.
-
Premium Power: The V-Twin Kawasaki® engine is the highest-rated residential engine available.
|
Hustler Raptor XD Accessories
|
2 Bag Catcher |
|
Mulching Kit 54" |
|
Flex Forks Kit 54" |
|
USB Kit |
|
Light Kit |
|
Stripe Kit 54" |
|
Hitch Kit |
|
Steering Lever Extension Kit |
|
__________________________________________________________________
Specifications
Engine
|
Engine Manufacturer |
Kawasaki FR691 |
Engine Horsepower |
23
|
Displacement |
726cc
|
Cooling |
Air Cooled |
Engine Warranty |
3 year |
Drive System
|
Type |
Dual Hydrostatic |
Transmission |
Hydro-Gear ZT2800
|
Fuel Capacity |
3 gal.
|
Ground Speed (Fwd) |
Up to 7.5 mph |
Parking Brake |
Integrated with steering levers
|
Deck
|
Cutting Width |
54"
|
Cutting Height |
1.5" to 4.5" |
Deck Depth |
4.5" |
Deck Lift |
Foot Operated |
Number of Blades |
3
|
Blade Length |
18.50"
|
Blade Tip Speed |
18,800 |
Spindles |
Aluminum w/ 1" shaft and double lip sealed ball bearings |
Deck Engagement |
Ogura GT1.5 |
Deck Material |
Fabricated 11 gauge steel |
Spindle Mounts |
Reinforced 7 gauge steel |
Impact Trim Area |
3/8" x 1" steel bar |
Construction
|
Frame |
1.50" X 3" steel tubing |
Front Axle |
Fabricated with sealed ball bearings |
Front Caster Wheel |
Sealed ball bearings |
Front Caster Fork |
Fabricated 3/8" steel |
General
|
Seat |
Premium bolstered high-back seat with armrests and built-in lumbar support |
Cup Holder |
Yes |
Dimensions
|
Front Tire (Inches)
|
13 X 6.5 |
Drive Tire (Inches) |
20 x 12-12 BigBite™ |
Weight (lbs) |
653
|
Height (Inches) |
43.7 |
Length (Inches) |
71.1 |
Width w/ Chute Up (Inches) |
58.5
|
Tire-to-Tire Width (Inches) |
48.6
|
Productivity (Acres Per Hour) |
3.27
|
Warranty
|
Warranty |
3 Year/300-hour residential |
Dimensions with Catcher
|
Catcher Style |
2-bag |
Powered / Non-powered |
Non-powered |
Catcher Capacity |
5.4 bushel |
Mower Length w/ Catcher |
91.4 |
Mower Width w/ Catcher |
69.5 |
If you have any questions about this Hustler Raptor XD 54” mower, give us a call during business hours and one of our friendly associates will be happy to assist you. 410-692-5170
